उत्पाद का विवरण
उत्पत्ति के प्लेस: हेनान, चीन
ब्रांड नाम: Zhenglan cable
प्रमाणन: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
मॉडल संख्या: विश्वसनीय बिजली वितरण के लिए वॉटर ब्लॉकिंग और कॉपर वायर स्क्रीन के साथ 18/30KV सिंगल कोर एक्सएलपीई इ
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 3000 मीटर
मूल्य: USD 1- USD 200
पैकेजिंग विवरण: लकड़ी के ड्रम, लकड़ी और स्टील ड्रम, ग्राहक के अनुरोध के रूप में
प्रसव के समय: 7-10 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी ,, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 100000 मीटर प्रति माह
सामग्री: |
अल्युमीनियम |
बाहरी म्यान रंग: |
काला या अनुकूलित |
मुख्य: |
सिंगल कोर |
केबल मार्क: |
स्याही मुद्रण या एम्बॉसिंग सामग्री अनुकूलित |
धातु स्क्रीन: |
कॉपर वायर+कॉपर टेप स्क्रीन या कॉपर टेप |
कवच: |
कोई कवच नहीं |
सामग्री: |
अल्युमीनियम |
बाहरी म्यान रंग: |
काला या अनुकूलित |
मुख्य: |
सिंगल कोर |
केबल मार्क: |
स्याही मुद्रण या एम्बॉसिंग सामग्री अनुकूलित |
धातु स्क्रीन: |
कॉपर वायर+कॉपर टेप स्क्रीन या कॉपर टेप |
कवच: |
कोई कवच नहीं |

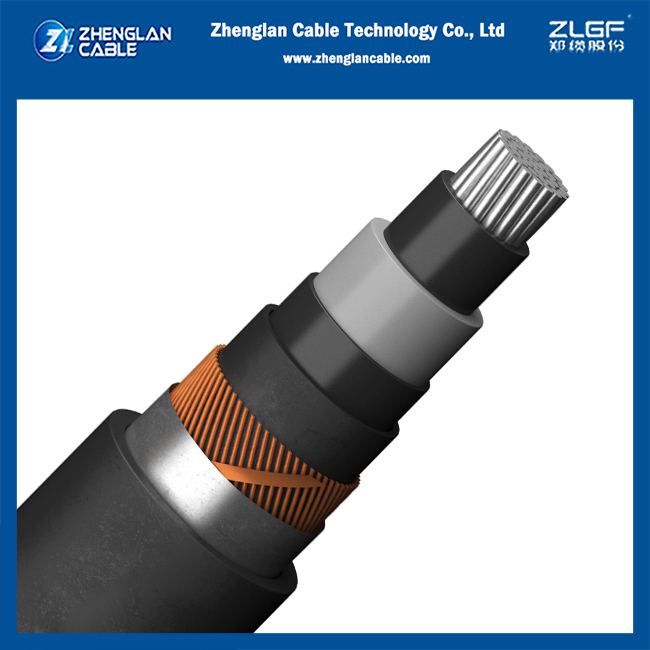

This 18/30KV single core XLPE insulated PE sheathed power cable is designed for power distribution networks. Suitable for fixed outdoor installations where mechanical stress may occur, it features both longitudinal and radial water blocking properties. The cable performs well in unfavorable operating conditions, particularly where protection against water penetration is required following mechanical damage.
Nom. Cross-Section Area | Nom. Insulation Thickness | Copper Tape Thickness | Copper Wire Screen Area* | Conductor material |
---|---|---|---|---|
300 mm² | 8.0 mm | 0.1 mm | 25 mm² | aluminum |
Nom. Sheath Thickness | Approx. Overall Diameter | Approximate Weight |
---|---|---|
2.4 mm | 45.5 mm | 2125 kg/km |
Our medium voltage cables are manufactured using the monosil process with specialized equipment, state-of-the-art research facilities, and rigorous quality control. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of insulation materials.
